About Macro Development


KLayout supports macro programming with the Ruby or Python language. Macros are basically Ruby or Python scripts that are executed by the integrated interpreter. In order to enable macro programming, the program has to be built with support by either one of those languages.

As a special kind of macros, DRC and LVS scripts are available for editing and debugging too. These scripts are basically Ruby scripts but run in a customized environment so that specific functions are provided. For more details on these kind of scripts see Design Rule Check (DRC) and Layout vs. Schematic (LVS).

In a simple scenario, scripts can be stored in simple text files and loaded by KLayout using the "-rm" or "-r" command-line option. "-rm" will run a script and then execute the normal application. "-r" will run a script and then exit the application.

In addition, KLayout supports special macro files with the suffix ".lym". Those files are XML files that store the macro code along with additional information, for example the description text, the interpreter language and certain flags. These flags tell KLayout to run the macro automatically when starting up for example. In addition, KLayout can present such macros in the "Macros" menu without having to register a specific menu extension.

Macros can be technology specific. This means, they are packaged with a technology and are associated with the technology in the user interface: if they provide a menu item, this item will only become visible when the respective technology is active.

KLayout also offers an integrated development environment (IDE) that allows editing and debugging of Ruby and Python scripts. It offers a simple debugger with the ability to set breakpoints and to interact with the current context while in a breakpoint. An interactive "console" allows entering and evaluating of expressions. This feature is available also when execution has stopped in a breakpoint, so the console can be used to evaluate or modify variables in the current context. Watch expressions are supported as well: a series of expressions can be configured which is evaluated and displayed in a breakpoint. With Python scripts, the local context can be inspected in the "Inspector" window: the variables available in the local context are listed with their values.

While the debugger is open, execution will slow down somewhat and undesired interactions may happen - specifically when developing UI components. To mitigate this problem, debugging can be disabled in the macro IDE.

KLayout defines certain folders which it scans for macro files. Each directory is scanned recursively. It can contain subdirectories with more macros and can also contain support files such as images or additional Ruby or Python modules. That allows organizing macros in modules where each module contains the root module files and supporting files.

KLayout looks for macros in the following places:

The macro IDE will store Python and Ruby macros separately in "macros" and "pymacros" for easier management, but technically these folders are equivalent. KLayout will automatically derive the interpreter from the context stored in ".lym" files or the file extension (".rb" or ".py").

You can also add custom places using the "Add Location" entry from the repository browser's context menu (right mouse click). These locations will be added to the tree. That setting is stored in the setup, so it will be available when KLayout is started again. You can remove places again by using "Remove Location" from the macro tree's context menu.

KLayout will scan these places for files and present them in the macro development IDE's repository browser. You can edit the files and their properties and run the macros from the IDE. KLayout's IDE supports these file types:

Other files can be stored inside the folders (for example Qt ".ui" files), but they won't be shown in the IDE.

The macro development IDE

The macro development IDE consists of three parts: the repository browser, the editor panel and the console. The repository browser allows browsing of the macro repositories and to add new files, to move files, to delete files, to import plain ruby files as KLayout macros and to rename files. In the editor panel, the macro or other files can be edited, breakpoints can be set and the macro can be run. In the console, Ruby expressions can be entered and evaluated. This also works while KLayout is in a breakpoint. That feature evaluating of expressions in the current context and to modify variables. The console also shows the output of the Ruby scripts when they are run in the context of the IDE.

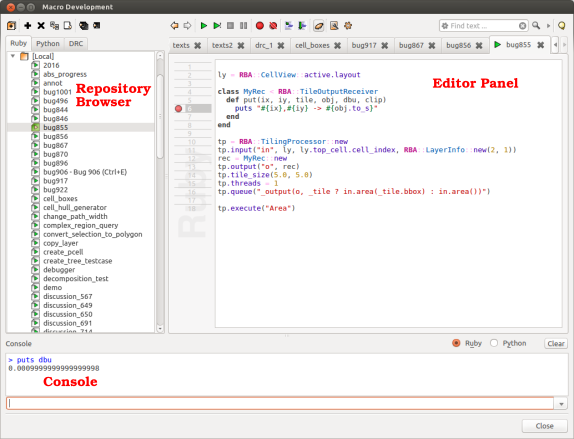

The following image shows the IDE with the three main parts:

When the debugger enters a breakpoint, the IDE also shows the call stack. By clicking on an entry in the call stack panel, the editor will open the respective file and position the cursor at that line. A watch window shows the watch expressions with their evaluated values. Watch expressions are evaluated every time a breakpoint it hit. They can be managed using the "Add", "Edit", "Delete" and "Clear" functions from the context menu (right click on the watch list). For Python scripts, the local variables of the currently selected stack context can be browsed in the "Inspector" window in the middle. Currently this feature is not available for Ruby scripts.

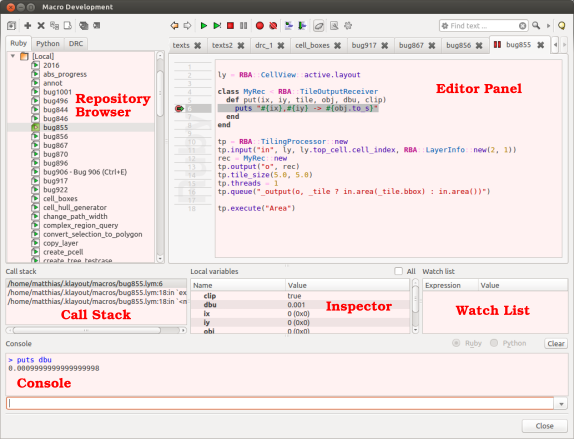

The following image shows the IDE in breakpoint mode for Ruby scripts:

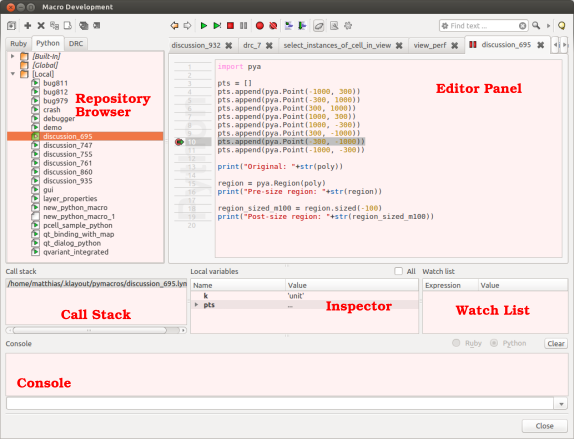

The following image shows the IDE in breakpoint mode for Python scripts:

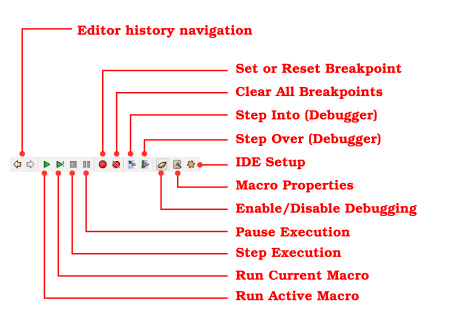

The editor panel features a toolbar with several tool buttons. The following image shows the toolbar and the buttons with their function:

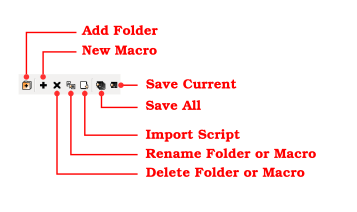

Also the repository browser features a toolbar with more tool buttons. The following image shows that toolbar and the buttons with their function:

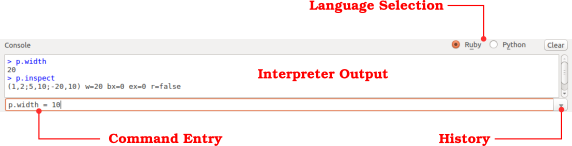

Finally the console panel allows interactive executing of Ruby or Python expressions. The following image shows the console elements and their function:

Basic tasks

Creating a new macro

To create a new macro, first open the tab to select a language you want to use. Choose the branch in the repository browser where you want to create the macro. Press the "+" button above the repository browser. A dialog will come up in which you can select a template. A template is basically the initial content of the macro plus some default settings. After the macro is created, the new entry is highlighted and the name can be changed to the desired new name.

Editing the macro

After the macro has been created, it is shown in the editor window. Other macros or files can be opened in the editor by double-clicking at their name. Depending on the type of file, the editor provides some basic syntax highlighting. Each file is opened in a separate tab. The tabs can be closed by clicking at the "x" button in the tab.

To save the current edits to the files, press the "Save all files" or the "Save current file" button in the repository browser.

Search and search & replace is available in the editor panel in the search box. The search a text, enter the text in the search box and hit Return. Use the "Find next" button to find the next occurrence of the text. Click on the "RE" button to enable regular expressions in the search function. To enable "Replace" mode, open the replace text edit box by clicking on the little arrow right to the search tools. Enter the text to replace the search text into the edit box and use "Replace all" to replace all occurrences or use "Replace and search" to replace the current occurrence and highlight the next one.

Running the macro

To run the macro, press the "Run current script" or the "Run script from the current tab" button in the editor panel. "Run current" will run the script that was run the last time, irregardless if the script is the one currently shown in the editor panel. That way, it is possible to run the same script while editing support files for example. "Run script from the current tab" will always run the script from the current tab.

When the macro runs, output will be sent to the console below the editor panel. Breakpoints can be set or reset with the "Set breakpoint" button or the F9 key in the editor panel. Go to the line where you want to change the breakpoint and use "Set breakpoint" to set or reset the breakpoint on the current line. All breakpoints can be cleared with the "Clear all breakpoints" button.

While the macro is running or in a breakpoint, the execution can be aborted with the "Stop script" button. Execution can be interrupted with the "Pause script" button. In that case, KLayout will interrupt the script execution at the current position.

When in a breakpoint, single-line step-by-step is supported with the "Step into" button or the F11 key. Stepping over a block or procedure call is supported with the "Step over" button or the F10 key. Please note that "Step over" will also step over blocks.

While KLayout has stopped the execution of the script, the console can be used to examine variables in the current context or to modify their values. Ruby expressions entered into the console are simply executed in the current context.

When the macro editor window is open, macros will be run under debugger control. This will considerably slow down macro execution and create issues when you develop macros that integrate deeply into the system (for example macros filtering Qt events from the application). To avoid issues, debugging can be disabled by selecting or unselecting the "Enable debugging" button in the editor's toolbar. If the button is checked (shown pressed), debuggin is enabled and breakpoints can be used. If debugging is disabled, breakpoints will be ignored.

Working with the repository browser

The repository browser provides a tab for each category of macros. "DRC" is a special category which provides macros that perform a DRC. Such macros are basically Ruby scripts that are executed in the context of a DRC engine and hence supply different functionality. Still, they execute in the usual context and breakpoints, watch expressions and similar can be used. The other categories are macros executing either in a Ruby or in a Python interpreter.

Within the repository browser, you can add new folders using the "New folder" button. Before you do so, select the branch of the repository where you want to create the new folder. The new folder will be highlighted and the name can be edited.

To delete files and folders, select the file or folder in the browser and click the "Delete" button (the "x"). Caution: deleting a file or folder cannot be undone currently.

To rename a file or folder, select the entry in the browser and click on the "Rename" button and enter the new name. To move files or folder, simply drag and drop them to the desired target location.

Pain ruby scripts can be imported into the repository as KLayout macro files. Select the branch where you want to import the files in the repository browser, click on the "Import" button and select the file to import. ".rbm" files will automatically be set to "auto-run".

Configuring macros

A macro can be configured in several ways:

The macro properties can be edited using the "Edit properties" button in the editor panel.

Migrating code

Before version 0.22, KLayout did not have a concept of macro IDE, macro folders, interpreters and generic macros. Ruby code written for the pre-0.22 system can be imported into the macro management system of KLayout using the "Import" function from the repository browser toolbar. ".rbm" files are marked as "autorun" in order to emulate the behavior of KLayout 0.21 and previous versions. ".rb" files are converted into KLayout macros without any further assumption. ".rb" files can also simply be copied into the macro directories. However, such files are regarded as secondary sources in KLayout. Typically those are files that are loaded by other macros. Importing a file makes code a generic source (".lym" file) with enhanced capabilities.

After importing the code the macro can be attached to a menu entry by setting "Show in menu" on the properties page. It is also possible to assign keyboard shortcuts. If either the menu item is selected or the key specified in the shortcut is pressed, the macro is executed.

This feature is more convenient to use than the scheme used previously. Until KLayout 0.22 it was only possible to register a macro with a specific menu entry by performing the registration in the code. The disadvantage of this approach is that when the macro code is re-executed, the menu item is registered again and appears in the menu twice. It is therefore more convenient to remove the menu registration code and let KLayout register the macro in the menu by setting the menu binding properties accordingly.


The editor and IDE can be configured using the "Setup" button in the editor panel. That dialog allows configuring fonts and colors to be used in the editor and the behavior of the debugger in some respects.

The documentation of the Ruby and Python classes exposed by KLayout is available in KLayout's online help system here.
