create a heptamer array

Hi all,

If any one know how to create a heptamer array in Klayout?

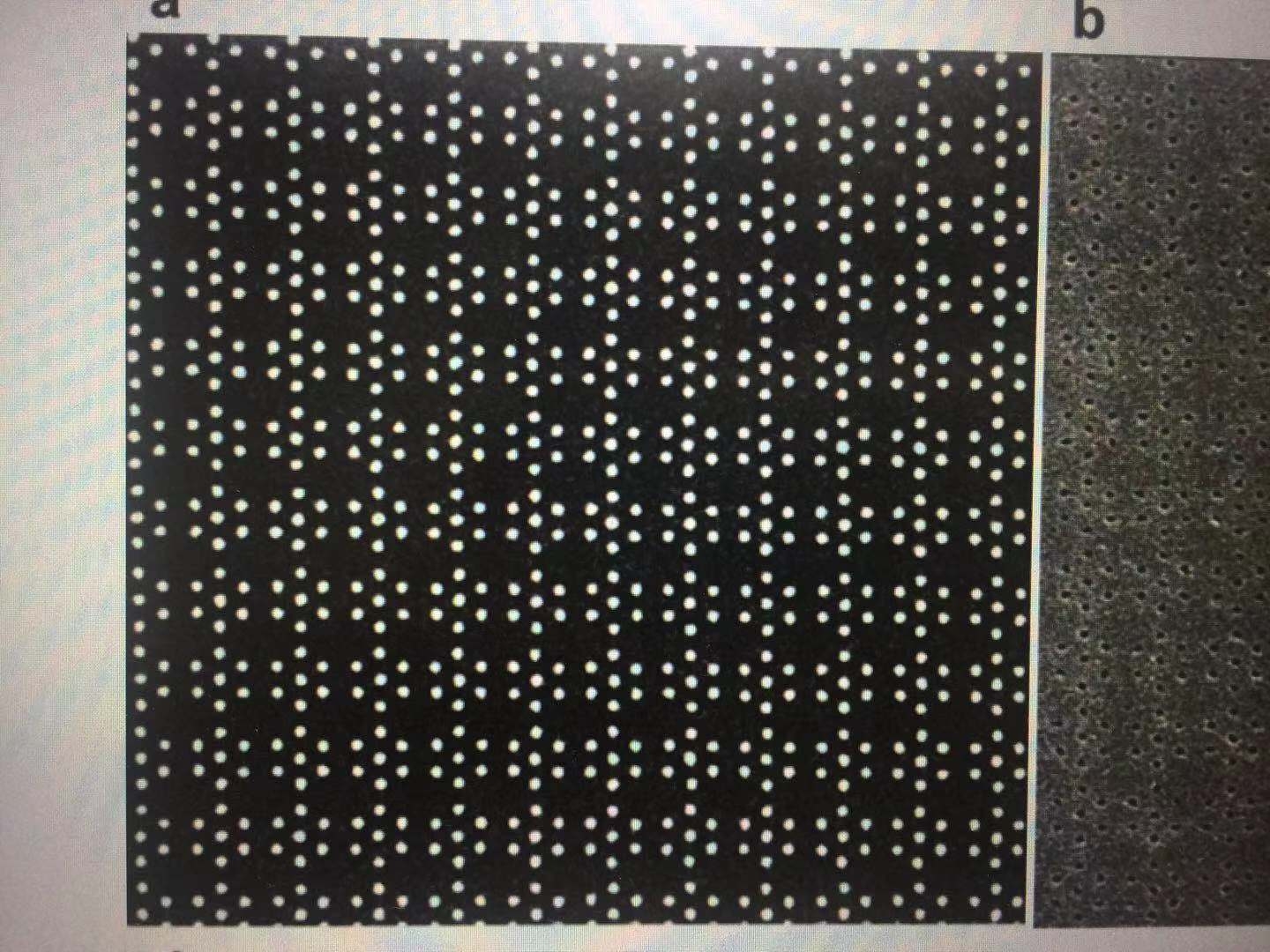

As shown in the picture.

Thank you very much in advance.

Comments

  • You need to create a first cell with 8 points. When finished, you create your heptamer cell, add the first cell instance. Then, select that cell and edit its properties to create an array with N column and M rows. The 2 points on the left and right can recovered each other as a result if you prefer.

    Laurent
