# DRC ~ split rectilinear polygons in rectangles

Hello Matthias,

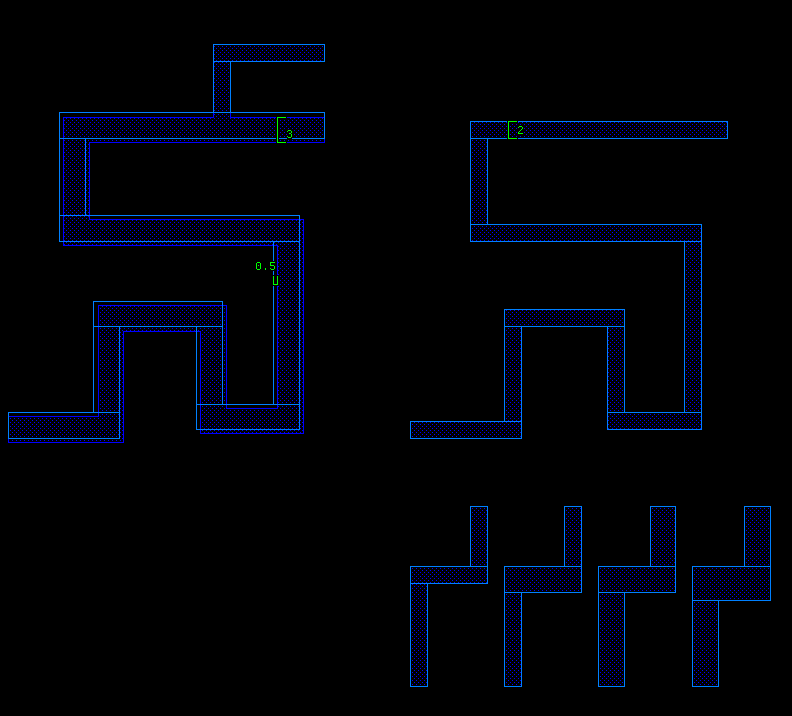

I'm trying to split rectilinear polygons in rectangles in the DRC environment. Not sure if the code below is the way to go: it produces some shifts for some of the structures and I can't figure out why... Any idea what the issue might be?

Very amazed by the power of KLayout!!!

Cheers,

Tomas

Layer01 = input(1,0)

Layer01A = Layer01.rectilinear

Layer01B = polygon_layer

Layer01A.each {|polygon|

trapezoids = polygon.to_itype.decompose_trapezoids

trapezoids.each{|trapezoid|

Layer01B.insert(trapezoid.to_dtype)

}

}

Layer01A.output(10,0)
Layer01B.output(11,0)

## Comments

• Hi Matthias,

I managed to fix it, "to_itype(1.dbu)" instead of "to_itype", and "to_dtype(1.dbu)" instead of "to_dtype"...
:-)

Cheers,

Tomas

• Very good ...

Well, once again I'm pleading for using code formatting ...

As the DRC feature is based on the RBA::Region class and the latter offers a universal "decompose_trapezoids" method, it's possible to employ the latter.

A DRC is based on a dynamic language you can extend the DRCLayer class at runtime to expose this feature. This code tricks DRC into having a new method called "decompose_trapezoids":

``````# Monkey-patch the DRCLayer class to offer a new method
# called "decompose_trapezoids"
class DRC::DRCLayer
def decompose_trapezoids
DRCLayer::new(@engine, @data.decompose_trapezoids_to_region)
end
end

l1 = input(1, 0)
l1_decomposed = l1.decompose_trapezoids
l1_decomposed.output(100, 0)
``````

Regards,

Matthias

• Hi Matthias,

Thanks for the suggestion, it works like a charm!!! I still got a lot to learn... :-O

I'm now looking into these mode parameters TD_htrapezoids, TD_simple, TD_vtrapezoids:

1) decompose_trapezoids_to_region(TD_htrapezoids) -> Error: Uninitialized Constant
2) decompose_trapezoids_to_region(0) -> Works fine

Do these constants need to be initialized somehow?

0 -> represents TD_htrapezoids
1 -> represents TD_simple???
2 -> represents TD_vtrapezoids???

Cheers,

Tomas

• @Thomas The values are "RBA::Polygon::TD_htrapezoids" etc. Don't use the integer equivalents as they might change in future releases.

• Great! Scripts updated. Thank you Matthias!
