Hi, Since i am new to the Klayout and trying to draw some box and path objects(box, path, etc.,) which are all disappearing once the mouse button left clicked and released. I have noticed the least level is "1". Please suggest. Thanks!

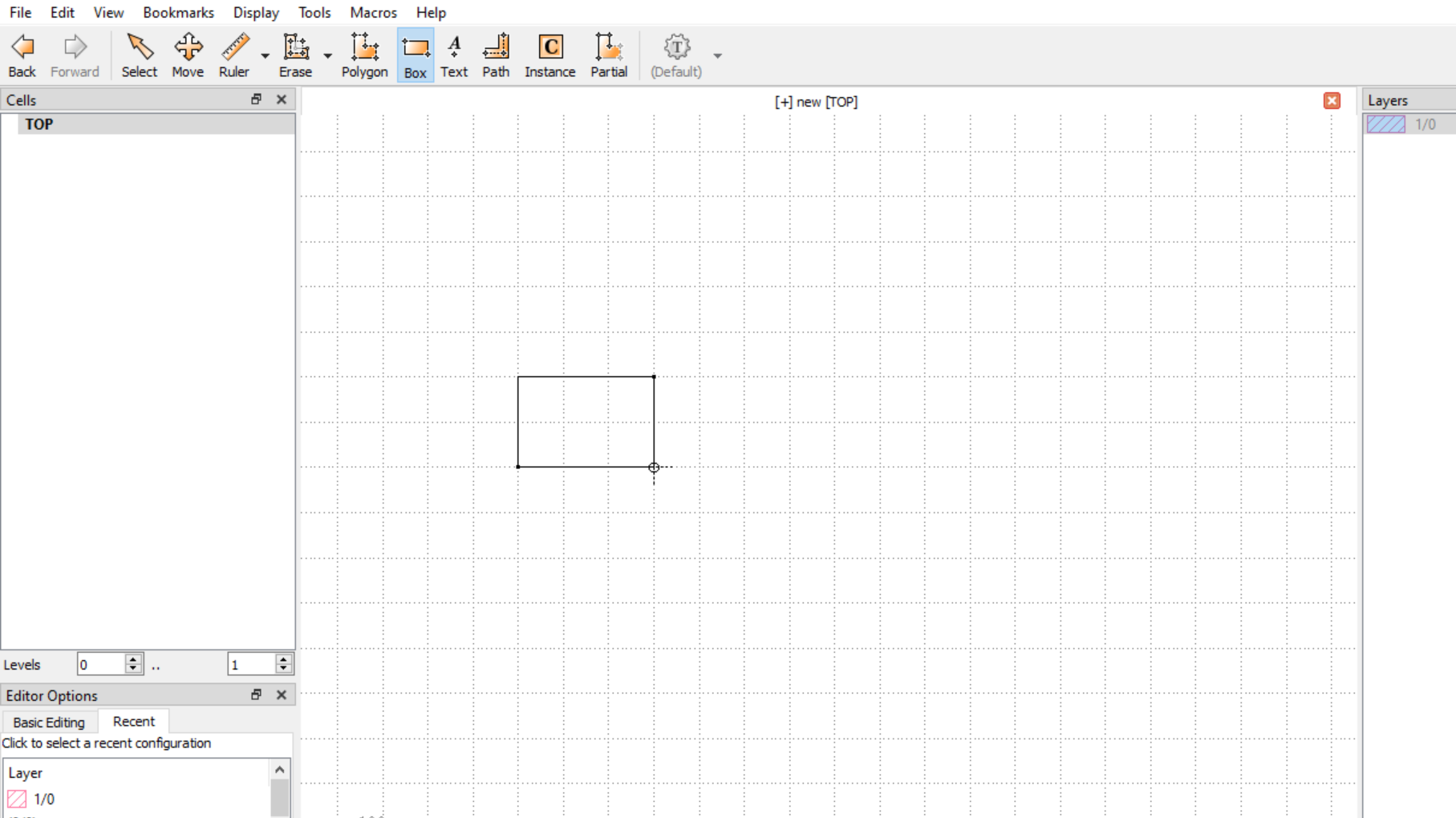

This behavior is related to the mode you choose, the drawing mode can be adjust from the toolbar.
Currently you are using erase mode, which removes shapes at the area you draw, click on the drop-down button next to the erase and change it to add mode to actually draw shapes
Comments
Hi Newbeer,
This behavior is related to the mode you choose, the drawing mode can be adjust from the toolbar.
Currently you are using
erase
mode, which removes shapes at the area you draw, click on the drop-down button next to theerase
and change it toadd
mode to actually draw shapesHi RawrRanger,
It works now and I can see the objects after changing the mode. Thank you!
@RawrRanger Thanks as usual ...

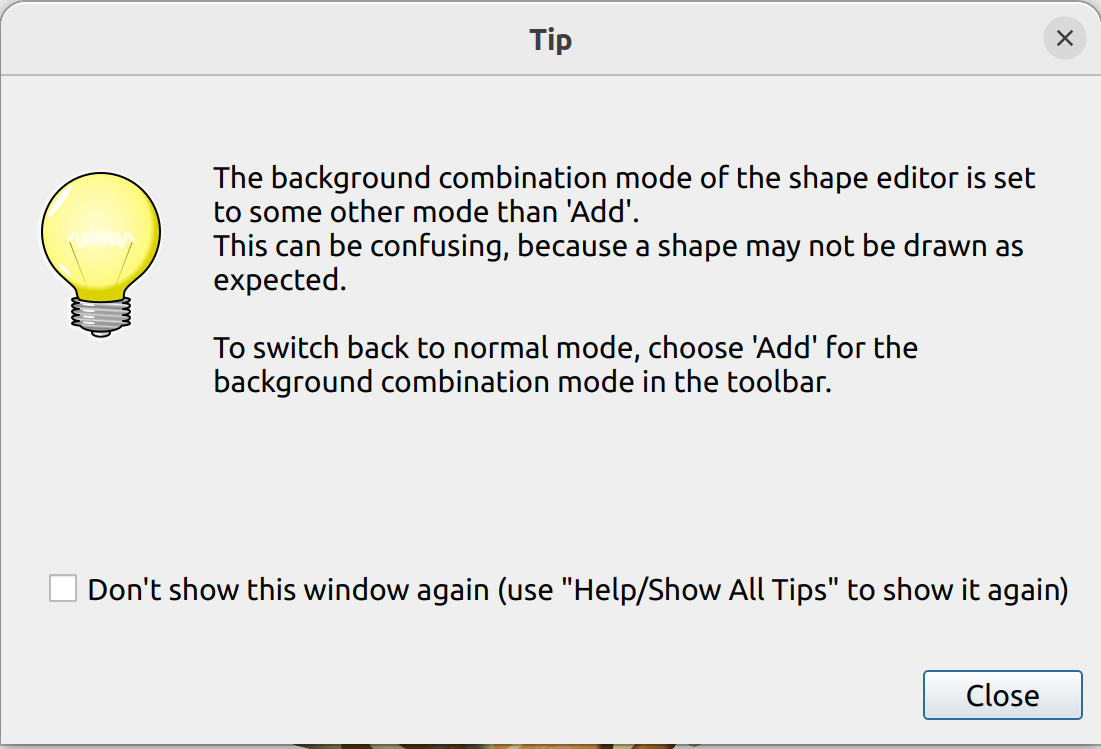

but this is why I put this tip in place:
Matthias
Thank you Matthias for highlighting the tip.
