Looping, but only call layer.output once? Removing "redudancy" in DRC report

arikb

Hello, when I am nestled in a loop, iterating over each shape, checking my design rule, I realize that when calling layer.output it outputs a specific error on all my shapes. I dont see a way getting around looping since my design rule is a bit tedious to enforce using common functions in the drc framework, and therefore I have resorted to conventional looping, but I am stuck with the following "problem". The DRC report is extensive, showing many of the same violations several times. In fact, for each iteration, I am able to get as many errors as there are components to verifiy. I believe this is due to layer.output() checking globally (n checks all at once), while my loop is local (1 check, n times). Any advice on how to get around this?

Matthias

It would help if you show a little more of your code than just the end.

I understand that you loop over the shapes and probably do some shape-by-shape interact or something like this.

Apart from being super slow, you cannot call "output" multiple times. The way to collect the results is to add them to an error layer and output that layer at the end:

errors = polygons

do loop
  ... compute error marker in "marker"
  errors.insert(marker)
end loop

errors.output("Errors")

But as you are working against the core concepts of DRC, I cannot promise you will come quite far with that approach. A concept compatible with DRC is PolygonNeighborhoodVisitor (https://www.klayout.de/doc-qt5/code/class_PolygonNeighborhoodVisitor.html).

This is a kind of callback that gives you a polygon and its neighbors. In your case, you could feed it the overlap regions as primary polygons and the vertical bars as neighbors. Inside the callback you will then see every overlap and the corresponding vertical bar. That allows you you compute the ratios from the polygon pairs and generate a result polygon (the error marker). So technically it is a loop, but one that is primarily executed inside the C++ core and it does the neighborhood collection for you.

You could also use the vertical bars as primary input and the overlap regions as neighbors - this would allow you to identify cases where a vertical bar overlaps multiple horizontal lines.

However, that feature is not integrated into DRC and it is very generic, so it's not straightforward to use. On the plus side it usually cooperates well with deep mode (not here, see below) and slow script execution will be confined to the core function - the overhead is fast C++.

Here is some code. The comments should help understanding what is going on:

# See https://www.klayout.de/doc-qt5/code/class_PolygonNeighborhoodVisitor.html
class MyVisitor < RBA::PolygonNeighborhoodVisitor

  def initialize
    self.result_type = RBA::CompoundRegionOperationNode::ResultType::Region
  end

  def neighbors(layout, cell, polygon, neighborhood)

    prim_box = polygon.bbox

    neighborhood.each do |inp, others|

      # TODO: error handling if there is more than one overlap
      others.each do |other|

        # a simple implementation: "polygon" is the vertical bar (primary), "other" is one overlap box
        other_box = other.bbox
        top_part = prim_box.top - other_box.top
        bot_part = other_box.bottom - prim_box.bottom

        if top_part > 0 && bot_part > 0
          # A simple demo implementation: top part must not be larger than twice the bottom part
          if top_part > 2 * bot_part
            # Output the original vertical bar as error shape
            output(polygon)
          end
        end

      end

    end

  end

end

# inject a new method ("discussion_2730") into the layer object
class DRC::DRCLayer
  def discussion_2730(other)
    # TODO: check if other is a polygon layer
    children = [
      RBA::CompoundRegionOperationNode::new_secondary(other.data)
    ]
    visitor = MyVisitor::new
    # NOTE: distance is -1 as we are only interested in overlaps
    node = RBA::CompoundRegionOperationNode::new_polygon_neighborhood(children, visitor, -1)
    result = self.data.complex_op(node)
    return DRC::DRCLayer::new(@engine, result)
  end
end


# Now, we can use it

report("Discussion 2730")

l1 = input(1, 0)  # horizontal bars
l2 = input(2, 0)  # vertical bars

overlap = l1 & l2

# NOTE: this particular case is *not* compatible with deep mode
# as the new method is not behaving isotropically and there is no
# API for variant formation yet. There may be a way to do that in the future.
errors = l2.discussion_2730(overlap)

errors.output("top part > 2 * bottom part")

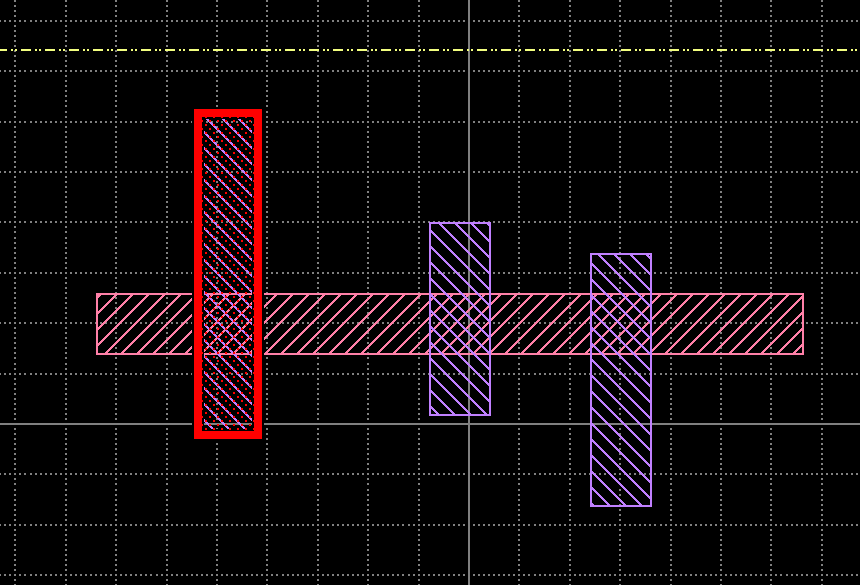

And here is some example:

Matthias
