Mandelbrot Fractal

Hi Matthias,

Back to bother you again.
I’ve been assigned a task to make a GDS file of a Mandelbrot Fractal. I’ve found a short VB Excel macro code below.

Sub frac1()
For y = 1 To 200
For x = 1 To 200
i = 0
zx = 0
zy = 0
cx = -2 + x / 50
cy = -2 + y / 50
Do Until (i = 255) Or (zx * zx + zy * zy) >= 4
xt = zx * zy
zx = zx * zx - zy * zy + cx
zy = 2 * xt + cy
i = i + 1
Loop
Cells(y, x).Interior.Color = VBA.RGB(10, 10, i * 10)
‘ my additional line to output X and Y and i values in each cell Cells(y, x).Value = x & "," & y & ",L" & i
Next x
Next y
End Sub

To make a GDS of this I did it the long way in Excel where I got the X and Y co-ordinates and i as the layer then (in excel) defined each layer separately and copied and pasted about 40000 individual “cell.shapes” commands for each individual pixel (1um box).

# create a new view (mode 1) with an empty layout
main_window = RBA::Application::instance.main_window
layout = main_window.create_layout(1).layout
layout_view = main_window.current_view

# set the database unit (shown as an example, the default is 0.001)
layout.dbu = 0.001

# create a cell
cell = layout.create_cell("TOP")

# create a layer

Layer1= layout.insert_layer(RBA::LayerInfo::new(1, 0))
Layer2= layout.insert_layer(RBA::LayerInfo::new(2, 0))
Etc  …


cell.shapes(Layer1).insert(RBA::Box::new(29,28,30,29))
cell.shapes(Layer1).insert(RBA::Box::new(30,28,31,29))
cell.shapes(Layer2).insert(RBA::Box::new(31,28,32,29))
cell.shapes(Layer2).insert(RBA::Box::new(32,28,33,29))
etc…  40000 times


# select the top cell in the view, set up the view's layer list and
# fit the viewport to the extensions of our layout
layout_view.select_cell(cell.cell_index, 0)
layout_view.add_missing_layers
layout_view.zoom_fit

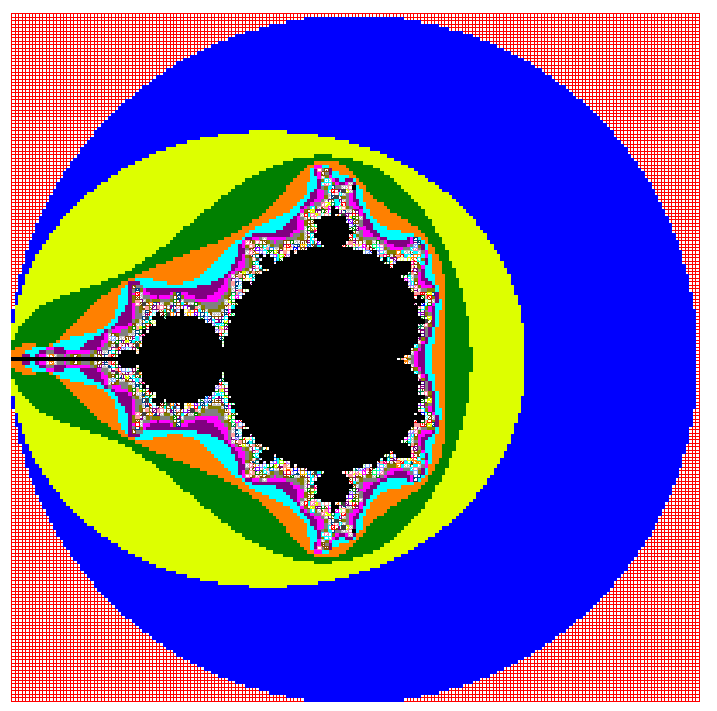

It worked but was quite a long process. (see attached image)

I tried using “while” function for the loop but I don’t know how to include the OR statement. I also have trouble defining the layer names i.e. Combining text “Layer” with variable (1) to make Layer1 etc.

Is there any possibility that you could convert the VB routine to Ruby?

Stretching my luck here: Is it also possible to write a Ruby routine that would enable me to merge each layer automatically so that I don’t have to manually view each one individually, select all then merge. i.e. loop that show each layer individually, select all, merge, unselect then move onto next layer.

Many thanks,
Richard

Comments

  • Come on, you're pulling my leg, are you?

    I bet you guys were sitting together with a beer and tried to come up with the strangest request ever posted to this forum. I'd bet no one ever printed a Mandelbrot set on silicon!

    But it's fun, so I give you this:

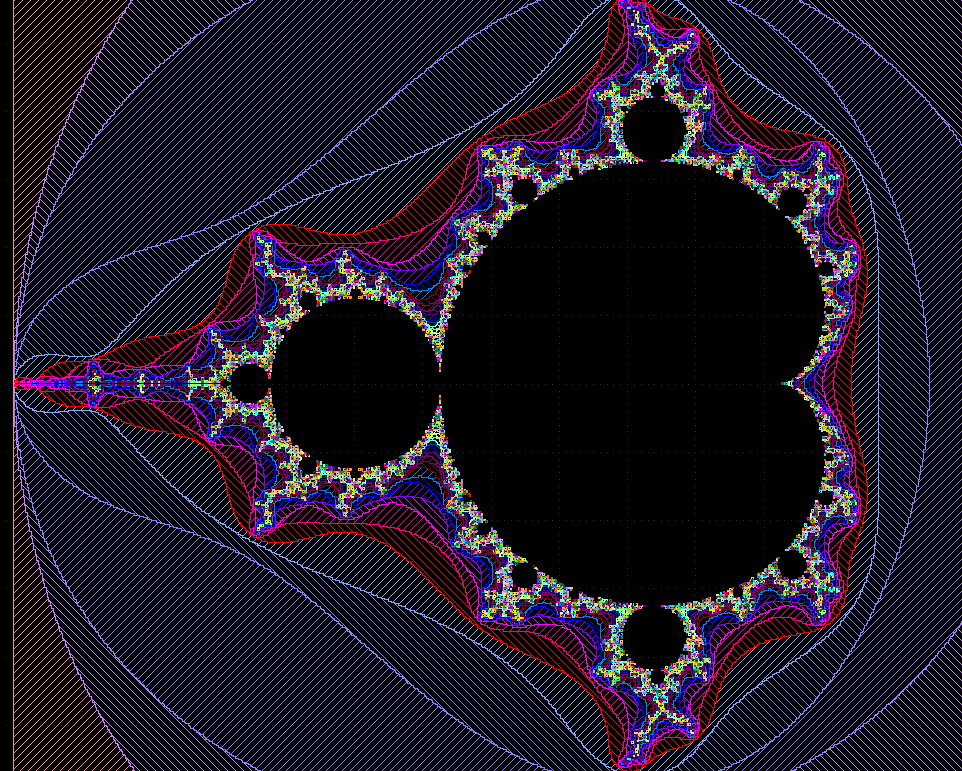

    def frac(x, y, nmax) zx = zy = 0.0 nmax.times do |n| if zx * zx + zy * zy >= 4.0 return n end (zx, zy) = [zx * zx - zy * zy + x, 2 * zx * zy + y] end nil end nmax = 255 regions = [nil] * nmax nx = 1000 ny = 1000 pixel_size = 1000 nx.times do |ix| line_regions = [nil] * nmax ny.times do |iy| bx = RBA::Box::new(ix, iy, ix + 1, iy + 1) * pixel_size f = frac((ix - nx * 0.5) * 4.0 / nx, (iy - ny * 0.5) * 4.0 / ny, nmax) if f line_regions[f] ||= RBA::Region::new line_regions[f].insert(bx) end end line_regions.each_with_index do |r,i| if r regions[i] ||= RBA::Region::new regions[i].insert(r.merged) end end end ly = RBA::Layout::new tc = ly.create_cell("TOP") regions.each_with_index do |r,i| if r li = ly.layer(i, 0) tc.shapes(li).insert(r.merged) end end mw = RBA::MainWindow::instance mw.create_view mw.current_view.show_layout(ly, true)

    Cheers!

    Matthias

  • Awesome!!!

    We're going to try it out on our new e-beam if I can up the resolution and subtract the central (black) region (in the excel code it works if I plot only where i = 255).

    Again, I'm in awe of your talent

    Very much appreciated

    Richard

  • This is the most beautiful code I ever seen for ebeam :)

    Thank you Matthias for sharing the code, I learned a lot from it.

    Elias
